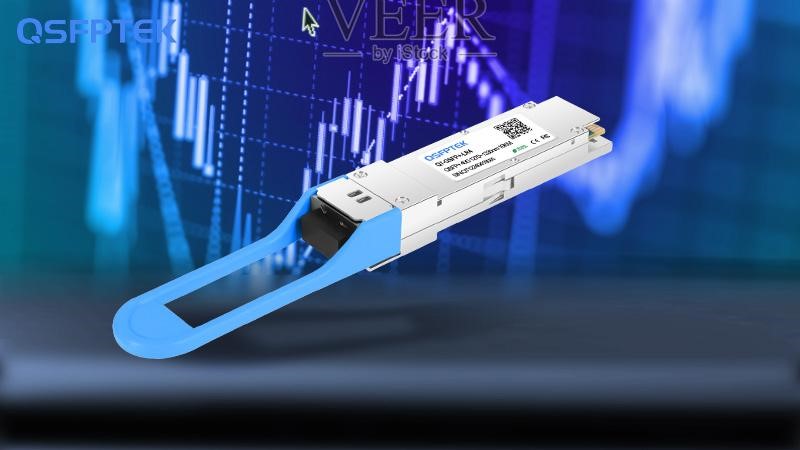

Overview of 40GBASE-LR4 QSFP+ Optical Module

Introduction

In contrast to the 40GBASE-SR4, the 40GBASE-LR4 QSFP+ optical module is designed for long-range applications, offering the ability to transmit data over much greater distances. This makes it ideal for metropolitan area networks (MANs), wide-area networks (WANs), and inter-data center connections. In this article, we will delve into the features, benefits, and use cases of the 40GBASE-LR4 optical module, highlighting how it supports high-speed data transmission over long distances.

What is 40GBASE-LR4?

The 40GBASE-LR4 is a long-range optical transceiver designed for 40-Gigabit Ethernet applications. Unlike the 40GBASE-SR4, which uses multimode fiber, the LR4 operates with single-mode fiber (SMF), enabling it to achieve longer transmission distances. The LR4 module also uses four optical lanes, each transmitting 10 Gbps, resulting in a total data rate of 40 Gbps. This module complies with the IEEE 802.3ba standard, ensuring it is compatible with existing networking infrastructure.

Transmission Range and Performance

The 40GBASE-LR4 is capable of transmitting data over significantly greater distances than its SR4 counterpart. It can reach up to 10 kilometers on single-mode fiber, making it ideal for long-range applications. This extended reach is essential for connecting data centers across metropolitan areas or for establishing high-speed links between geographically dispersed locations.

In terms of performance, the 40GBASE-LR4 offers robust data transmission with low latency and minimal signal loss, ensuring efficient communication across long distances. The module’s ability to transmit over 10 kilometers allows for more flexible network designs, especially in large-scale or geographically distributed networks.

Applications of 40GBASE-LR4

The 40GBASE-LR4 is most commonly used in long-range applications where high-speed data transfer is required over distances greater than 100 meters. Some typical use cases include:

Data center interconnections: LR4 modules are used to link data centers across cities or regions, facilitating efficient communication between facilities.
Metropolitan area networks (MANs): LR4 is ideal for providing high-speed connectivity over large geographic areas, connecting various parts of a city or region.
Wide-area networks (WANs): LR4 modules are also deployed in WANs to enable fast data transfer across long distances, supporting business-critical applications.

Advantages of 40GBASE-LR4

Long-distance transmission: The ability to transmit data up to 10 kilometers on single-mode fiber makes the LR4 module ideal for wide-area or metropolitan networks.
Lower latency: Compared to other long-distance transmission technologies, LR4 offers relatively low latency, ensuring fast data transfer even over large distances.
Future-proof: The LR4 module is designed to meet the growing bandwidth demands of modern networks, making it a great investment for businesses looking to scale their infrastructure.
Scalability: LR4 modules support high-speed data transfer across long distances, allowing networks to scale efficiently as demand for bandwidth increases.

Challenges and Limitations

While the 40GBASE-LR4 offers significant advantages for long-range applications, it also comes with some challenges:

Higher cost: Compared to the SR4, LR4 modules are more expensive, primarily due to the use of single-mode fiber and the advanced technology required for long-distance transmission.
Complex installation: Setting up LR4 modules often requires specialized knowledge and equipment, especially when working with single-mode fiber.
Compatibility: LR4 modules are primarily suited for long-range applications and may not be the best choice for short-range data transmission due to their higher cost and longer setup time.

Conclusion

The 40GBASE-LR4 QSFP+ optical module is a powerful solution for long-range, high-speed networking. Its ability to transmit data over distances up to 10 kilometers makes it perfect for wide-area or metropolitan networks, and it supports the growing demand for bandwidth in large-scale applications. Although the LR4 comes with a higher price tag and installation complexity, its benefits for long-range connectivity and scalability make it an excellent choice for businesses with geographically distributed networks.
